| FRP puItruded profiles |
 |
 |

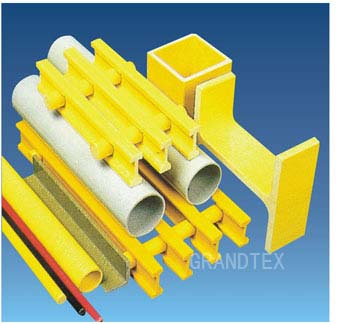

Standard structuraI shapes include equal angle，I beam，Wide flange beam，square tube，round
tube．kick plate etc．These structuraI shapes are used in a wide range of applications,offering a unique combination of chemical resistance，size stability，high strength，and thermal,electric non-conductivity．Each shape iS available in a number of dimensions to suit for a variety of design and application requirements．For SpeciaI uses．custom-Shapes are also available．
0rthophthaIic resin，lsophthalic resin and vinvl ester resin are available，as per different
environments．
|
| NO.01 |
|
| Size in inches
|
Lbs per Lin Ft
|
Size in mm
|
Kgs per Lin Meter
|
| 2х1/4
|
1.40
|
50х6.4
|
2.10
|
| 1-1/2х1/4 |
0.98
|
38х6.4 |
1.50
|
| 2-1/8х3/16 |
0.74
|
54х4.8 |
1.10
|
| 1-3/4х1/8 |
0.64
|
44х3.0 |
1.00
|
|
 |
|
NO.02
| Size in inches |
Lbs per Lin Ft |
Size in mm |
Kgs per Lin Meter |
| 1-1/2х1/4 |
0.79 |
38х6.4 |
1.20 |
| 2х1/4 |
1.12 |
50х6.4 |
1.70 |
| 3х1/4 |
1.70 |
76х6.4 |
2.50 |
|
 |
|
NO.03
| Size in inches |
Lbs per Lin Ft |
Size in mm |
Kgs per Lin Meter |
| 4х1/8 |
0.73 |
100х3 |
1.10 |
|
 |
|
NO.04
| Size in inches |
Lbs per Lin Ft |
Size in mm |
Kgs per Lin Meter |
| 2х9/16х1/8 |
0.25 |
50х14х3 |
0.4 |
| 6х1-5/8х1/4 |
1.68 |
152х41х6.4 |
2.5 |
| 8х3х8 |
3.40 |
200х9.5 |
5.1 |
|
 |
|
NO.05
| Size in inches |
Lbs per Lin Ft |
Size in mm |
Kgs per Lin Meter |
| 4х1/4 |
2.22 |
100х6.4 |
3.3 |
| 6х3/8 |
5.05 |
152х9.5 |
7.5 |
| 6х1/4 |
3.41 |
152х6.4 |
5.1 |
|
 |
|
NO.06
| Size in inches |
Lbs per Lin Ft |
Size in mm |
Kgs per Lin Meter |
| 1-1/2х1/5 |
0.25 |
38х5 |
0.4 |
| 2х1/4 |
0.73 |
50х6.4 |
1.1 |
| 3х1/4 |
1.04 |
76х6.4 |
1.5 |
| 4х1/2 |
2.92 |
100х13 |
4.4 |
| 4х3/8 |
3.44 |
100х9.5 |
5.1 |
| 6х1/2 |
4.50 |
152х13 |
6.7 |
|
 |
|
NO.07
| Size in inches |
Lbs per Lin Ft |
Size in mm |
Kgs per Lin Meter |
| 4х2х1/4 |
1.46 |
100х50х6.4 |
2.17 |
| 8х4х3/8 |
4.46 |
200х100х9.5 |
6.64 |
|
 |
|
