Grand Fiberglass Co., Ltd.

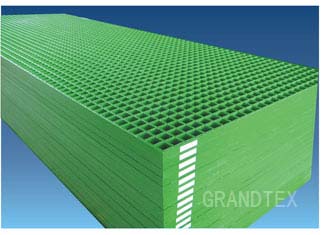

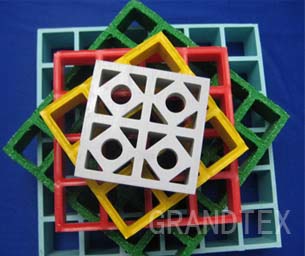

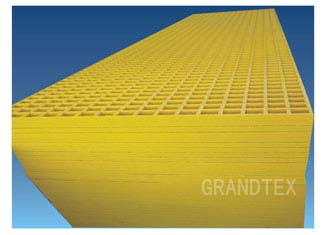

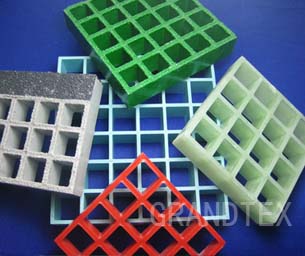

P- FRP grating

Different resin for different applications：
Qualfied raw materials ensure the excellent quality of FRP grating．All raw materials are from
carefully selected advanced suppliers．

Resin System

Resin Base	Resin Type	Description	Application
Orthophthalic polyester resin	Type O	Moderate corrosion resistance and fire retardant，flame spread rating ASTM E84 Class1,25 or Iess oPeration temperature-50℃～100℃	such grating are perfect for use in water/wastewater or air-agi n g aPPIications Iight industriaI applications，and in the wavezone areas of offsho re platforms where the． environmrnt is moderate.Although Type O is the least chemical resistant resin.it still offers superior performance to traditional flooring products such as steel,aluminum and wood and is the most economical resin available
Isophthalic Polyester	Type I	Industrial grade corrosion resistance and fire retardant，flame spread rating ASTM E84 Class1, 25 or Iess operation temperature-50℃～105℃	Such grating can be used in the environments of middle concentration inorganic acid，inorganicaIkaIi，etc
Vinyl ester	Type V	Superior corrosion resistance and fire retardant flame spread rating ASTM E84 Classl,25 or less operation temperatuer -50℃～110℃	Such grating can be used in the environments with serious corrosion
Food grade polyester resin	Type F	Food grade corrosion resistance and fire retardant operation temperatu re-50℃ ～105℃	Such gratings are often used in food PIants or drinking water Plants
Pheno licresin	Type P	resistance flame sPread rating ASTM E84 CIassl,5 or Iess,Iess，smoke developed index o，operation temperature amounting to 180℃	Such grating are usded in areas where fire resistance,low smoke and low toxic fumes are critical
High flame resistant viny ester	Type HV	Superior corrosion resistance and enhanced fire retardant flame spread rating ASTM E84 Class 1,10 or less operation temperature-50℃ -110℃.Such grating has passed assessment from ABS(American Bureau of Shipping)	Such grating can be used in the environments with seious corrosion requiring better flame resistance

More specifications of molded grating(imperial size)

ltem No	Panel Thickness	Mesh	Standard Panel Size	0pen Area	Wt./Sq.Ft
01	1/2”	1.5”x1.5”	4'x12',4'x8',3'x1O’	87％	1.23 lbs
02	1”	1.5”x1.5”	4'x13’,4'x12’,4'x8’,3'x10’	68％	2.52 lbs
03	1-1/4”	1.5”x1.5”	4'x13’,4'x12’,4'x8’,3'x10’	68％	3.2 lbs
04	1-1/2”	1.5”x1.5”	4'x13’,4'x12’,4'x8’,3'x1O’,5'x1O’,5'x13	68％	3.99 lbs
05	2”	2”x2”	4'x13’,4'x12’,4'x8’,3'x10’	71％	4.81 lbs
06	1”L	1”x4”	4'x12',4'x8',3'xl0’standard duty	68％	2.83 lbs
07	1”H	1”x4”	4'x12',4'x8',3'x10’heavy duty	52％	3.95 lbs
08	1-1/2”	1”x4”	4'x12',4'x8',3'x10’bearing bars to run width direction	68％	4.59 lbs
09	1-1/2”	3/4”x3/4”	4'x13’,4'x12’,4'x8’'3'x10’mini mesh	42％	4.81 lbs
10	1”	3/4”x3/4”	4'x13’,4'x12’,4'x8’,3'x10’raini mesh	42％	3.44 lbs
11	1-1/4”	0.79”x0.79”	3.3'x13.3’mini mesh	42％	3.69 lbs
12	1-1/2”	0.79”x0.79”	3.3'x13.3’mini mesh	42％	4.85 lbs
13	2-2/5”	1.5”x1.5”	4'x13’,4'x12’,4'x8’,3'x10’heavy duty	58％	10.32 lbs
14	1-1/2”	1”x6”	4'xl2',4'x8',3'xl0',bearing bars to run length direction	56％	4.59 lbs
15	1-1/2”	1.5”x6”	4'x12',bearing bars to run width direction	67％	3.26 lbs
16	*P1-1/2”	1.5”x1.5”	5'x13',4'x13',4'x12',4'x8',3'x10'	68％	3.58 lbs
17	*P1-1/2”	3/4”x3/4”	5'x13',5'x1O',4'x13',4'x12',4'x8',3'x1O',mini mesh	42％	4.36 lbs
18	*P1-1/2”	1-1/2”x6”	4'x12',Tshape bars，bearing bars to run length direction	67％	3.81 lbs
19	*P2”	2”x2”	4'x13',4'x12',4'x8',3'x1O'	71％	4.33 lbs
20	3/4”	1”x4”	4'x12',4'x8',3'x1O'	68％	2.5 lbs
21	1-1/2”	1”x4”	4'x12'Moltruded	46％	4.3 lbs
22	1/2”	0.79”x0.79”	4'x12'Moltruded	42％	2.1 lbs

The resin syslems we can offer include Ortho，lso，Vinyl esler and Phenolic‘P means phenolic resin syslem

Metric Size

ltem NO	Panel Thickness	Mesh	Standard Panel Size	0pen Area	Wt./Sq.M
01	13mm	38x38	1220×3660，1220×2440，915×3050	87％	6.0kgs
02	25mm	38x38	1220×4000，1220×3660，1220×2440，915×3050	68％	12.3kgs
03	30mm	38x38	1220×4000，1220×3660，1220×2440，915×3050	68％	14.6kgs
04	38mm	38x38	1220×4000，1220×3660，1220×2440，915×3050，1524×3050，1524×4000	68％	19.5kgs
05	50mm	50x50	1220×4000，1220×3660，1220×2440，915×3050	68％	23.51kgs
06	25mmL	25x100	1220×3660，1220×2440，915×3050，standard dufy	68％	13.83kgs
07	25mmH	25x100	1220×3660，1220×2440，915×3050，heavy dufy	52％	19.30kgs
08	38mm	25x100	1220×3660，1220×2440，915×3050，bearing bars to run width direction	68％	22.43kgs
09	38mm	19x19	1220×4000，1220×3660，1220×2440，915×3050，mini mesh	42％	23.51kgs
10	25mm	19x19	1220×4000，1220×3660，1220×2440，915×3050，mini mesh	42％	16.81kgs
11	30mm	20x20	1007×4007.mini mesh	42％	18.03kgs
12	40mm	20x20	1007×4007.mini mesh	42％	23.70kgs
13	60mm	38x38	1220×4000，1220×3660，1220×2440，915×3050，heavy duty	58％	50.43kgs
14	38mm	25x152	1220×3660，1220×2440，915×3050，bearing bars to run length direction	56％	22.43kgs
15	38mm	38x152	1220×3660，bearing bars to run width direction	67％	15.93kgs
16	*P38mm	38x38	1524×4000，1220×4000，1220×3660，1220×2440，915×3050	68％	17.49kgs
17	*P38mm	19x19	1524×4000，1220×4000，1220×3660，1220×2440，915×3050，mini mesh	42％	21.31kgs
18	*P38mm	38x152	1220×3660，”T”shape bars to run length direction	67％	18.62kgs
19	*P50mm	50x50	1220×4000，1220×3660，1220×2440，915×3050	71％	21.16kgs
20	38mm	25x100	1220×3660，bearing bars to run length direction	62％	15.2kgs
21	38mm	25x100	1220×3660 Moltruded	46％	21.01kgs
22	13mm	20x20	1220×3660 Moltruded	42％	10.24kgs
23	25mm	40x40	1007×007mm,1007×4047	67％	12.0kgs
24	40mm	40x40	1007×007mm,1007×4047	67％	19.2kgs
25	25mm	100x25	1007×3007mm	67％	13.0kgs
26	38mm	25x152	565×3050,stairtread	56％	23.02kgs

The resin systems we can offer include Ortho，lso，Vinyl ester and Phenolic. *Pmeans phenolic resin system

◆ Fiberglass mesh

◆ Drywall tape

◆ High temperature fabric

◆ Composite fiberglass

◆ Various tapes

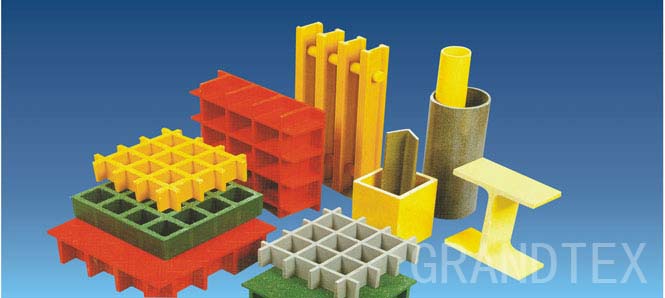

◆ FRP products
